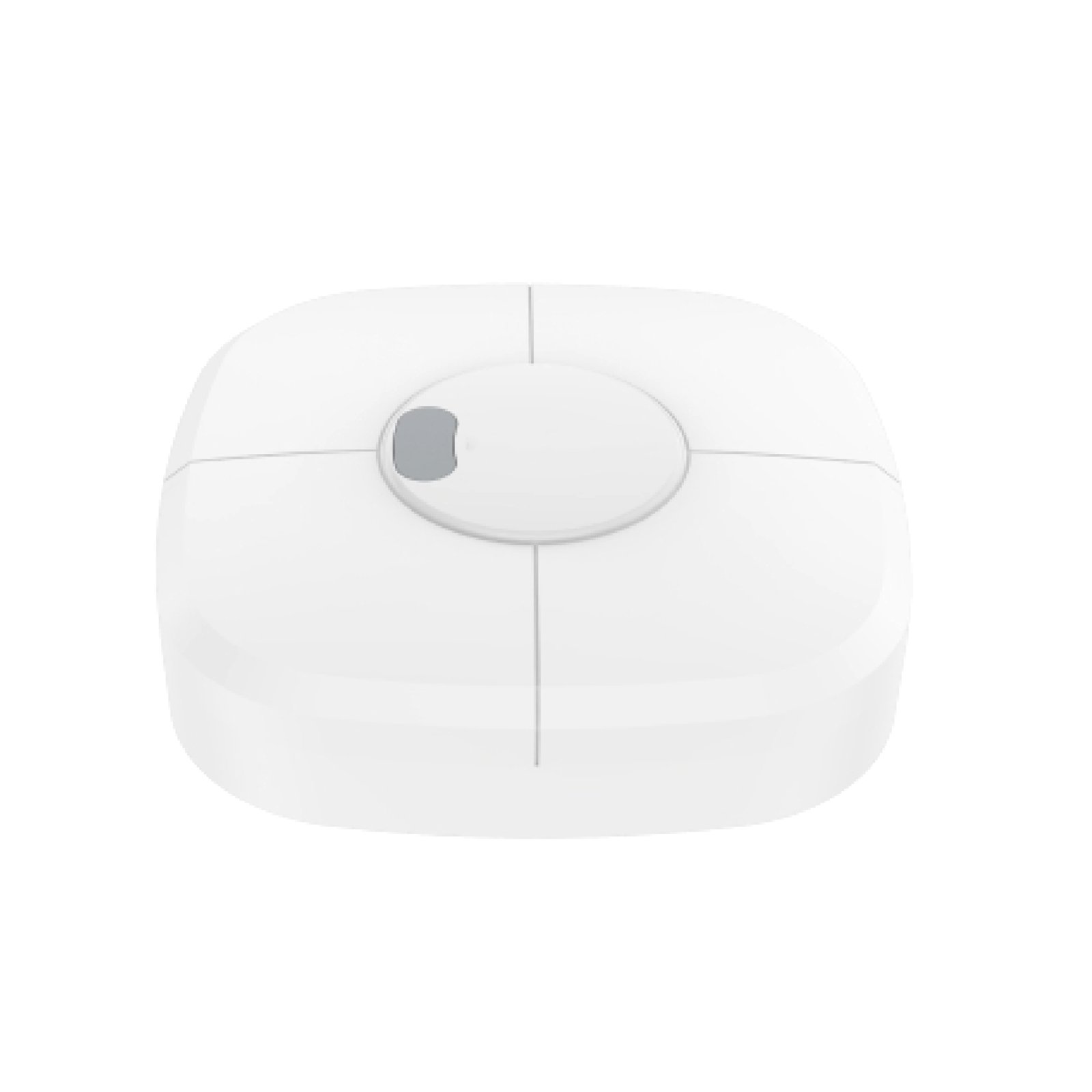

GAVA

GAVA is a surface-mounted presence sensor designed for reliable occupancy detection in large indoor spaces. Using advanced millimeter wave radar technology, it detects human movement and presence with a wide 100° sensing angle and adjustable detection area up to 4m. With adjustable hold time, daylight sensing and remote/DIP settings, GAVA is ideal for offices, warehouses, corridors, commercial spaces and other large-area lighting control applications

Product Specifications

Lightronic
  • Direction Area Remote / DIP setting : 0-4m

  • Hold time Dip Setting : 10s/30s/1min/3min/5min/30min

  • Input Voltage 100-240V AC 50-60HZ

  • Consumption <1W 230V DC

  • Output Signal 1 Channel ON/OFF

  • Max Surge current 60A

  • Sensor Type Presence Sensor

  • Radar Frequency 2.4Ghz-24.25gHZ ISM band

  • Transmitting Power 5mW max

  • Dimension 110mm x 110mm

  • Connection 4pin Terminal

  • Sensor Finish White
