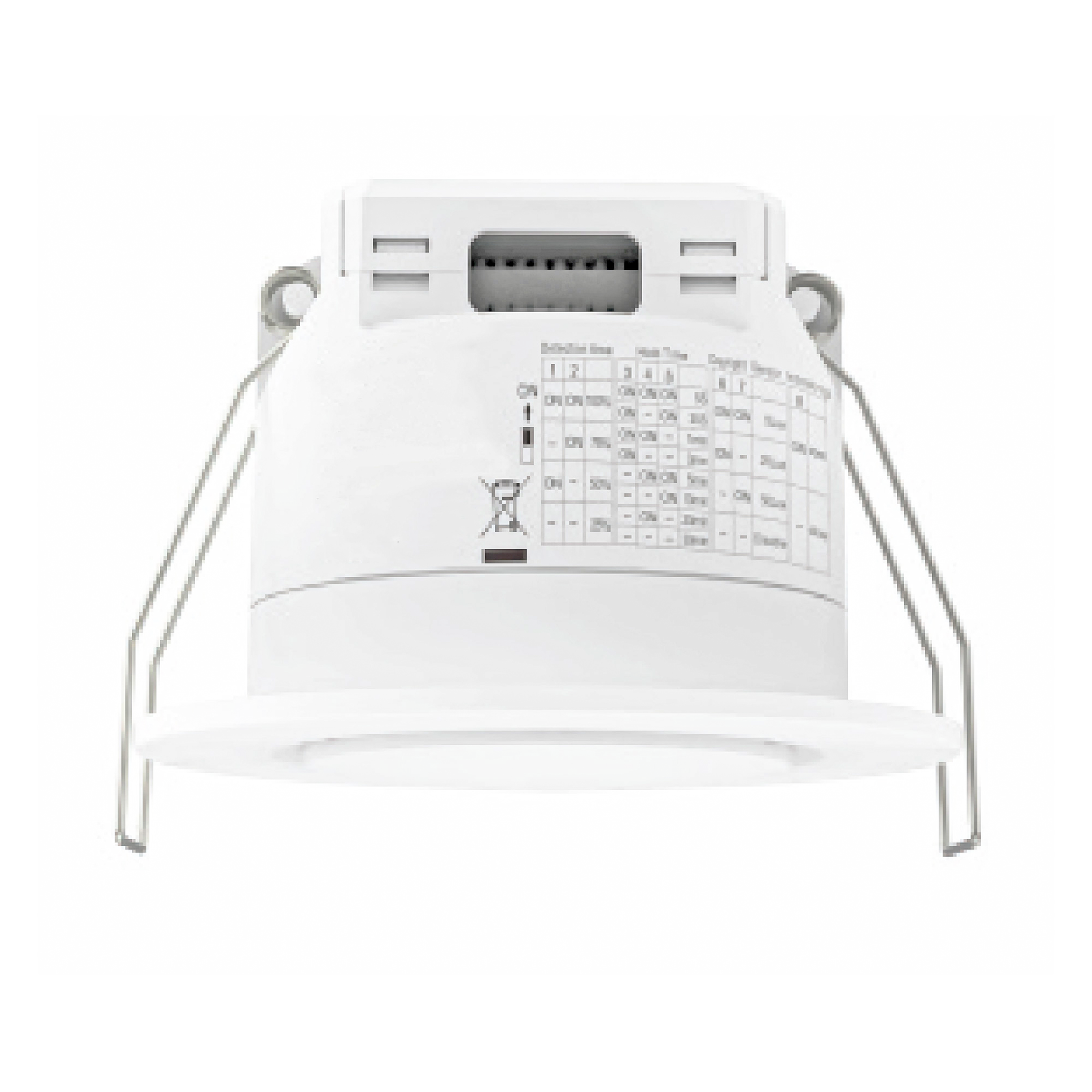

RIGA

Powered by advanced 24GHz millimeter-wave radar technology, the RIGA Large Space Presence Sensor delivers ultra-precise motion detection—even sensing subtle micro-movements like human breathing. Featuring a 6–8 meter detection coverage, an integrated daylight sensor, and robust 800W load capacity, this flush-mounted sensor optimizes commercial energy efficiency. It performs flawlessly across all temperature and humidity conditions and offers customizable settings via DIP switch or remote control for effortless smart lighting management.

Product Specifications

Lightronic
  • Detection Area DIP or MH10 remote setting 0.5m-4m

  • Hold time 10s/30s/1min/3min/5min/20min

  • Input Voltage AC 100-240V C 50-60HZ

  • Consumption <1W 230V DC

  • Output Signal 1 Channel ON/OFF

  • Max Surge current 50A

  • Sensor Type Presence Sensor

  • Radar Frequency 2.4Ghz-24.25gHZ ISM band

  • Transmitting Power 5mW max

  • Dimension 85mm x 2.5mm

  • Connection 4pin Terminal

  • Sensor Finish White
